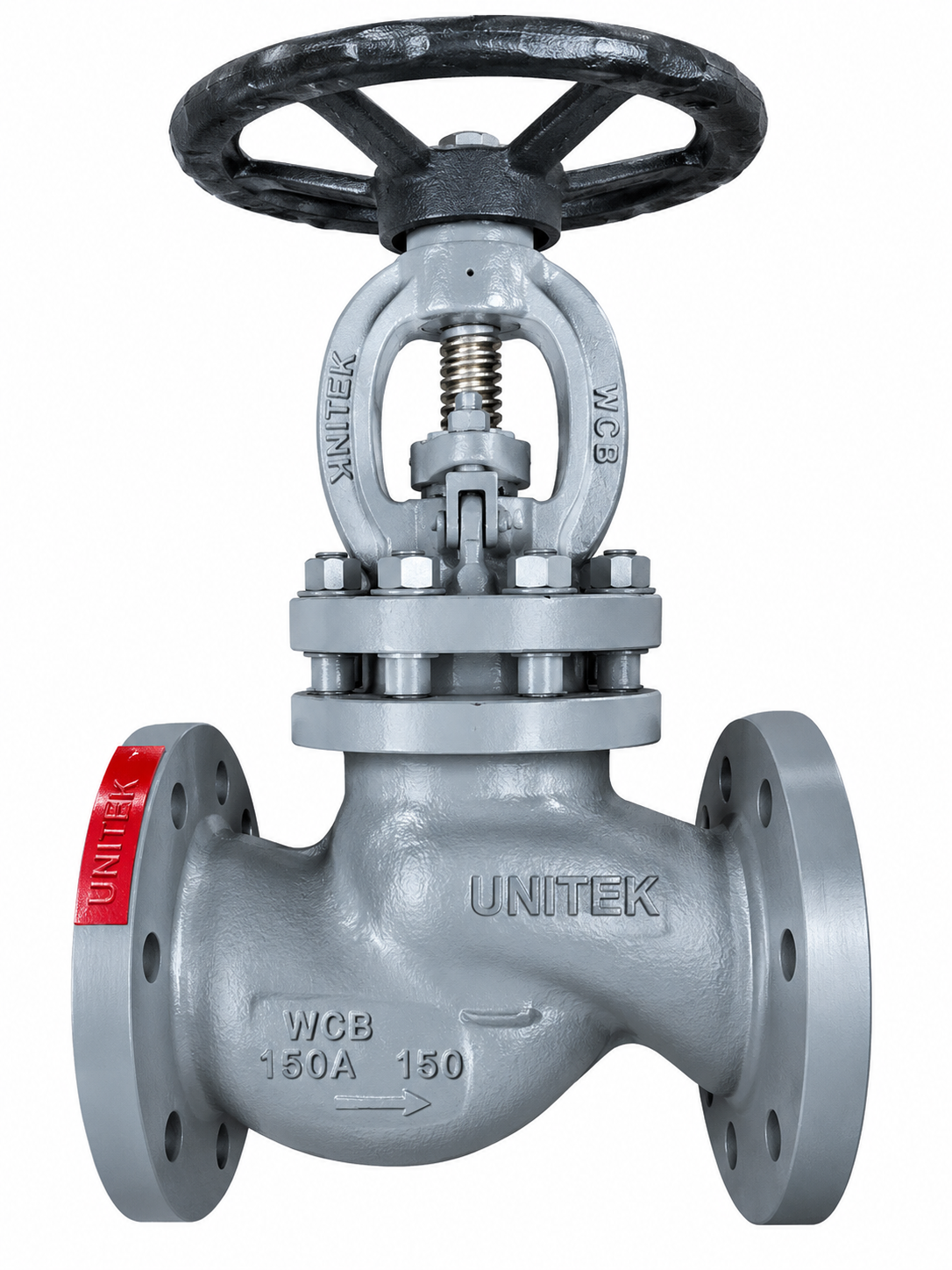

IBR Piston Valve Manufacturer in India

An IBR Piston Valve is a specialized industrial flow-control device engineered to regulate or isolate fluid and steam media within demanding thermal and process piping loops. In industrial steam networks, boiler systems, and power generation plants, selecting reliable isolation valves is crucial for maintaining operational integrity, managing fluid paths, and withstanding rigorous operating pressures and temperatures.

Unitek Valves operates as a trusted manufacturer, supplier, and exporter of industrial valves in Mumbai, India, providing reliable flow-control and isolation solutions for domestic industrial plants and international export markets.

What is an IBR Piston Valve?

A Piston Valve is an industrial shut-off and control valve that utilizes a cylindrical piston-type closing element moving axially within the valve body.

• Closing Element: The piston moves into or out of a specialized sealing arrangement, controlling or stopping the flow of the working medium.

• Sealing Mechanism: Sealing is achieved between the moving piston and the valve’s specific sealing rings, offering a distinct mechanical alternative to conventional wedge or disc seating designs.

• Industrial Application: Commonly evaluated for steam isolation, high-temperature utility lines, and heavy-duty process applications where reliable valve performance is required.

Note: Actual performance, sealing integrity, and operational suitability depend strictly on valve design, sizing parameters, operating pressures, temperatures, and specific service conditions.

How Does an IBR Piston Valve Work?

The general operational principle of an IBR Piston Valve involves linear movement of the piston through the valve body:

• Valve in Closed Position: When the handwheel or actuator is turned to close the valve, the piston enters the lower sealing ring, creating a tight physical barrier across the flow path.

• Piston Movement: As the valve is opened, the operating stem drives the piston upward out of the sealing zone.

• Flow Passage Opening: The upward displacement of the piston opens the flow passage, allowing media to travel through the valve body.

• Closing Movement: Reversing the handwheel drives the piston back down through the upper and lower sealing rings.

• Sealing Interaction: The precise sealing between the cylindrical surface of the piston and the internal sealing arrangement restricts flow according to the valve position.

The exact operating stroke and sealing arrangement depend on the specific manufacturer design and product specification.

IBR Piston Valve for Steam Applications

Industrial steam systems operate under challenging conditions that require robust valve construction. An IBR Steam Piston Valve may be considered for steam distribution and isolation duties where high-temperature steam and cyclic thermal loads are present. Proper evaluation of steam quality, pressure parameters, and operating cycles is essential to ensure the selected valve aligns with the application requirements.

IBR Piston Valve for Boiler Systems

Boiler installations require dependable valves capable of handling high-pressure steam and water circuits. An IBR Boiler Piston Valve is designed to meet strict industrial standards for boiler-house piping and auxiliary steam loops. Selection for boiler service depends on:

• Steam and water conditions

• Operating pressure ratings

• Temperature limits

• Valve material compatibility

• Nominal valve size and end connections

• Applicable IBR and project requirements

IBR Piston Valve for Power Plants

Thermal power plants and co-generation facilities handle massive volumes of high-energy steam operating at elevated temperatures. An IBR Piston Valve for Power Generation plays a role in managing steam isolation across various auxiliary headers and utility lines, ensuring reliable performance in demanding power-plant environments.

IBR Piston Valve for Industrial Piping & Process Steam

Industrial process plants utilize robust isolation valves across diverse operational units. Suitable applications are found in industries such as:

• Chemical processing plants

• Petrochemical units

• Oil & Gas facilities

• Power generation stations

• General manufacturing

• Industrial steam utilities

IBR Piston Valve Construction & Materials

A robust structural design ensures that the valve body, internal piston, stem, and sealing components withstand demanding thermal cycling and mechanical stresses. Potentially applicable materials may include:

• Carbon Steel: Widely specified for general industrial steam and utility lines.

• Cast Steel: Utilized in robust industrial applications requiring high mechanical strength.

• Alloy Steel: Selected for high-temperature steam services requiring enhanced creep resistance and structural integrity.

Material selection depends strictly on the service medium, operating pressure, operating temperature, corrosion conditions, specific application, and project specifications.

Flanged IBR Piston Valve

A Flanged IBR Piston Valve provides a secure, leak-resistant connection method for industrial piping networks.

• Piping Compatibility: Flanged ends allow seamless alignment with standard industrial pipe flanges and mating equipment nozzles.

• Maintenance Access: Flanges permit straightforward unbolting and removal when periodic inspections or piping modifications are required.

• Sealing Performance: High-performance gaskets and industrial bolting ensure reliable containment across high-pressure and high-temperature operating ranges.

IBR Piston Valve Operating Considerations

Proper selection and operation are vital to achieving reliable performance. Procurement and engineering teams should evaluate the following parameters:

• Service medium (steam, water, gas, or vapor)

• Operating pressure limits

• Operating temperature limits

• Flow requirements and pressure drop

• Nominal valve size (NPS / DN)

• Body and internal material compatibility

• End connection type and pressure rating

• Installation site conditions and orientation

• Applicable industrial standards

• IBR regulatory requirements and project specifications

IBR Piston Valve vs Other Industrial Valves

To understand where a piston valve fits within a piping system, it is helpful to distinguish it from other valve types:

• Gate Valve: Primarily designed for full-open or full-closed on/off isolation, utilizing a sliding gate disc.

• Globe Valve: Designed for throttling and flow regulation, utilizing a plug-type disc moving perpendicular to the seat.

• Check Valve: An automatic valve that prevents reverse flow in a pipeline.

• Pressure Reducing Valve (PRV): A control device that regulates and maintains stable downstream pressure during normal operation.

• Pressure Safety Valve (PSV): An emergency relief device that opens automatically to protect equipment from excessive overpressure.

A piston valve functions primarily as a robust shut-off or isolation valve and should not be confused with pressure regulation or safety relief equipment.

IBR Requirements, Inspection, Testing & Documentation

Compliance and documentation protocols vary based on the specific product design, service application, and contractual project specifications. Depending on order requirements, documentation scope may include:

• Material test certificates for pressure-retaining components

• Visual and dimensional inspection reports

• Pressure testing and valve performance verification records where specified

• Valve construction documentation

• Third-party inspection coordination, where specified by the client

• Applicable IBR-related documentation and certification

Important: Compliance with international standards (such as ASME, API, BS, or ASTM) does not automatically confer Indian Boiler Regulations (IBR) approval. IBR applicability, approval, and documentation depend entirely on the specific equipment, application, valve specification, and applicable regulatory or project requirements.

Benefits of Suitable IBR Piston Valves

• Reliable Isolation: Engineered for effective shut-off and isolation duties in demanding industrial piping networks.

• Piston-Based Sealing: Utilizes a cylindrical piston design that interacts with specialized sealing rings.

• Industrial Suitability: Constructed with robust body materials suited for steam and utility services.

• Flexible Configuration Options: Available in various materials and flanged end connections to match project requirements.

• Standard Compliance: Supported by material test records and regulatory documentation where specified.

IBR Piston Valve Manufacturer, Supplier & Exporter in India

UNITEK VALVES is a recognized manufacturer, supplier, and exporter of industrial valves based in Mumbai, India. Serving domestic processing plants and international industrial markets, the company provides dependable flow-control and isolation solutions supported by rigorous quality control and material traceability.

The company provides dedicated support for:

• Technical requirement review and parameter analysis

• Product selection guidance for industrial steam and boiler applications

• Inspection and testing coordination

• Documentation preparation

• Domestic supply across India and international export enquiries

How to Select the Right IBR Piston Valve

Procurement and engineering teams should evaluate system requirements systematically:

1. Define the exact fluid or steam service medium and operating phase.

2. Determine maximum operating pressures and working temperatures.

3. Establish flow requirements, nominal pipe size, and pressure class ratings.

4. Confirm body and internal material compatibility based on temperature and corrosion factors.

5. Verify pipe connection types and installation space constraints.

6. Specify any mandatory third-party inspection or IBR documentation requirements.

Final Enquiry / Call to Action

Submit your technical specifications, piping datasheets, service conditions, required valve details, quantities, and applicable IBR or project requirements to UNITEK VALVES for professional engineering support and commercial quotations on IBR Piston Valves.
