Description

IBR Strainer Manufacturer in India

An IBR Strainer is a mechanical filtration device engineered to remove unwanted solid particles, debris, and suspended scale from flowing media in high-pressure steam, boiler, and industrial piping systems. By capturing pipeline particulate matter before it reaches critical infrastructure, these devices protect sensitive downstream equipment such as control valves, steam traps, pumps, meters, and turbines. Operating primarily in demanding thermal and process environments, these strainers are specified where reliable fluid filtration and compliance with Indian Boiler Regulations are required. Unitek Valves functions as a manufacturer, supplier, and exporter of industrial valves and flow-control equipment in India, supplying high-quality filtration solutions for domestic and international industrial markets.

What is an IBR Strainer?

An IBR Strainer is a pipeline filtration component designed to house an internal mesh screen or perforated basket. As the fluid medium passes through the device, the internal element retains solid debris while allowing the filtered fluid to continue downstream.

Unlike shut-off valves or control devices, a strainer’s primary function is mechanical separation. It is installed in pipelines to intercept weld scale, pipe rust, grit, and foreign particles that are frequently present during initial plant commissioning or routine operations. Selecting the correct filtration configuration helps maintain operational efficiency across steam distribution networks and process piping loops.

How an IBR Strainer Works

The operation of a pipeline strainer relies on straightforward fluid mechanics:

1. Fluid Entry: The process fluid or steam enters the strainer body inlet under system pressure.

2. Screen Filtration: The fluid is forced to flow through the internal perforated screen, basket, or mesh element positioned across the flow path.

3. Particulate Retention: Suspended solid particles and foreign debris larger than the mesh openings are trapped inside the collection chamber or screen cavity.

4. Clean Fluid Discharge: The filtered medium passes through the screen wall and exits the strainer outlet toward downstream equipment.

5. Routine Maintenance: Over time, accumulated debris creates a pressure differential across the screen, indicating that the element requires isolation, removal, and cleaning.

IBR Strainer Types

Different piping configurations and spatial constraints require distinct strainer designs to achieve effective particulate removal.

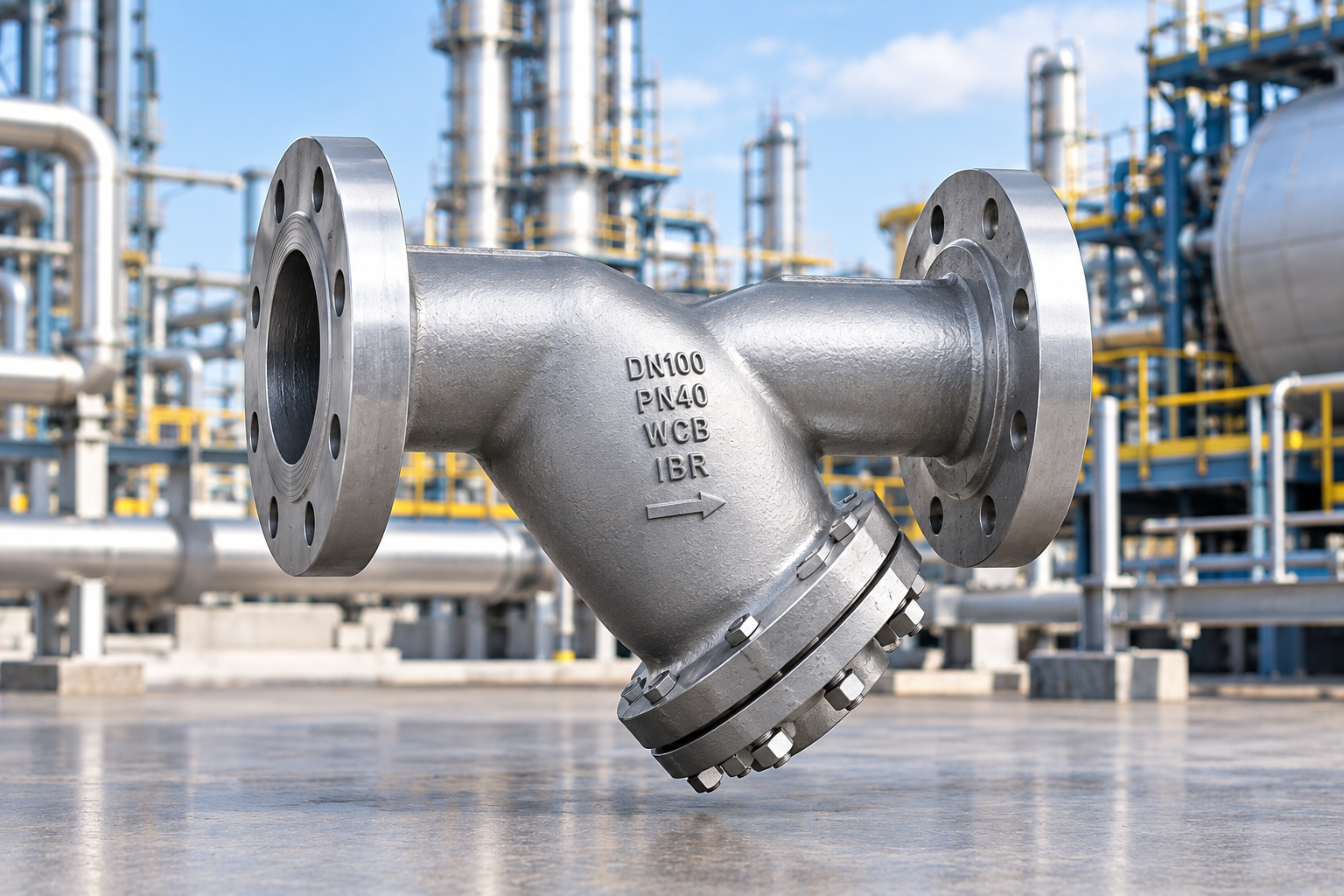

Y-Type IBR Strainer

A Y Type IBR Strainer derives its name from its distinctive slanted pocket configuration, which forms a “Y” shape relative to the main pipe axis.

• Design Layout: The internal screening element is positioned at an angle to the main flow, allowing for a compact body footprint.

• Applications: Widely used in steam lines, boiler piping, and liquid applications where space is limited and horizontal or vertical downward installation is required.

• Maintenance: The angled pocket collects debris efficiently and can be serviced by removing the cover flange and pulling out the screen element.

Bucket IBR Strainer

A Bucket Strainer IBR (also known as a basket strainer) is designed for applications carrying larger volumes of particulate matter.

• Design Layout: Features a larger, bucket-shaped internal filtration basket that provides a greater open area ratio.

• Applications: Frequently utilized in high-flow boiler feedwater systems, cooling water loops, and heavy industrial utility lines where frequent cleaning is necessary without causing excessive pressure drop.

• Maintenance: Many bucket configurations allow for quick-opening covers to simplify basket removal during scheduled maintenance.

Pot Strainer IBR

A Pot Strainer IBR incorporates a cylindrical pot-like body structure suited for heavy-duty industrial filtration tasks.

• Design Layout: Provides an enlarged internal settling chamber that allows heavier solid particles to drop out of suspension before reaching the fine screen element.

• Applications: Deployed in heavy process piping networks and power generation plants where robust construction is essential to manage severe service conditions.

IBR Strainers for Steam & Boiler Applications

Steam systems operate under elevated pressures and temperatures, making equipment protection essential for plant safety and efficiency. An IBR Steam Strainer or IBR Boiler Strainer is commonly integrated into steam loops to safeguard precision devices against erosion and mechanical jamming.

Appropriate applications include:

• Boiler piping

• Steam pipelines

• Main and auxiliary steam systems

• Feedwater systems

• Process steam systems

• Industrial utility lines

Where statutory requirements apply, installation must align with Indian Boiler Regulations and project specifications. Unitek Valves coordinates closely with plant engineers to supply suitable filtration configurations for these critical circuits.

IBR Strainers for Power Plants & Industrial Piping

Power generation facilities and heavy processing plants handle large volumes of high-energy fluids. An IBR Strainer for Power Plant or Thermal Power Plant service plays a vital supporting role in keeping utility loops free of abrasive debris.

Key industrial sectors utilizing these devices include:

• Power generation facilities

• Thermal power plants

• Refineries

• Petrochemical plants

• Chemical industries

• Fertilizer plants

• General process industries

In these demanding environments, strainers are often installed upstream of equipment such as IBR Pressure Reducing Valves, IBR Steam Traps, and flow meters to prevent premature wear.

IBR Strainer Materials & Construction

Selecting the correct body material is critical for ensuring structural integrity under operating pressures and temperatures. Depending on the service medium and piping class, an Alloy Steel IBR Strainer, Carbon Steel strainer, or Cast Steel unit is chosen.

• Carbon Steel / Cast Steel: Suitable for general utility steam, water, and non-corrosive process lines.

• Alloy Steel: Deployed in high-temperature steam systems requiring elevated creep resistance.

• Stainless Steel: Selected for corrosive chemical services or high-purity utility loops.

Material grades, body wall thicknesses, and internal screen selections (such as stainless steel mesh) are determined by operating temperatures, pipeline pressures, and project piping specifications.

Flanged IBR Strainers

A Flanged IBR Strainer provides a secure, leak-resistant connection method for heavy industrial piping systems.

• Installation: Flanged ends allow for straightforward installation and removal during periodic maintenance inspections without cutting or welding the pipeline.

• Compatibility: Flange drillings and ratings are manufactured to align with standard industrial piping classes and project requirements.

Inspection, Testing & IBR Documentation

Quality verification ensures that every strainer meets required manufacturing and safety standards. Depending on the project specification, inspection and testing protocols may include:

• Visual and dimensional inspection

• Material documentation and traceability certificates

• Pressure testing of the strainer body where applicable

• Internal screen and mesh verification

• Third-party inspection coordination, where specified

• IBR-related documentation and certification, where required by statutory regulations

Exact testing requirements and documentation scopes should be communicated during the commercial enquiry stage.

Benefits of IBR Strainers

• Downstream Protection: Captures solid particles to protect precision components such as IBR Gate Valves, IBR Globe Valves, IBR Check Valves, and control equipment.

• Reduced Maintenance: Prevents particulate-induced scoring on valve seats and internal trim surfaces.

• System Reliability: Helps maintain smooth flow dynamics in steam distribution and boiler feed circuits.

• Service Accessibility: Designed to allow straightforward screen removal and cleaning depending on the configuration.

• Versatile Construction: Available in multiple body materials and configurations to suit diverse industrial applications.

How to Select an IBR Strainer

Proper strainer selection requires a careful review of system parameters rather than relying on nominal pipe size alone:

1. Service Medium: Identify whether the application involves steam, water, gas, or chemical process fluids.

2. Operating Conditions: Determine operating and design pressures alongside operating and design temperatures.

3. Flow Rate & Velocity: Review pipeline flow requirements to minimize excessive pressure loss across the screen.

4. Strainer Configuration: Choose between Y-Type, Bucket, or Pot designs based on available space and particulate load.

5. Body & Screen Material: Select compatible metallurgy for the body shell and internal screening mesh.

6. End Connections: Confirm flanged or alternative end connections matching the piping class.

7. Regulatory Compliance: Verify whether IBR certification, third-party inspection, or special documentation is mandated by the project.

IBR Strainer Manufacturer, Supplier & Exporter in India

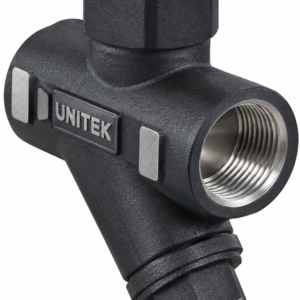

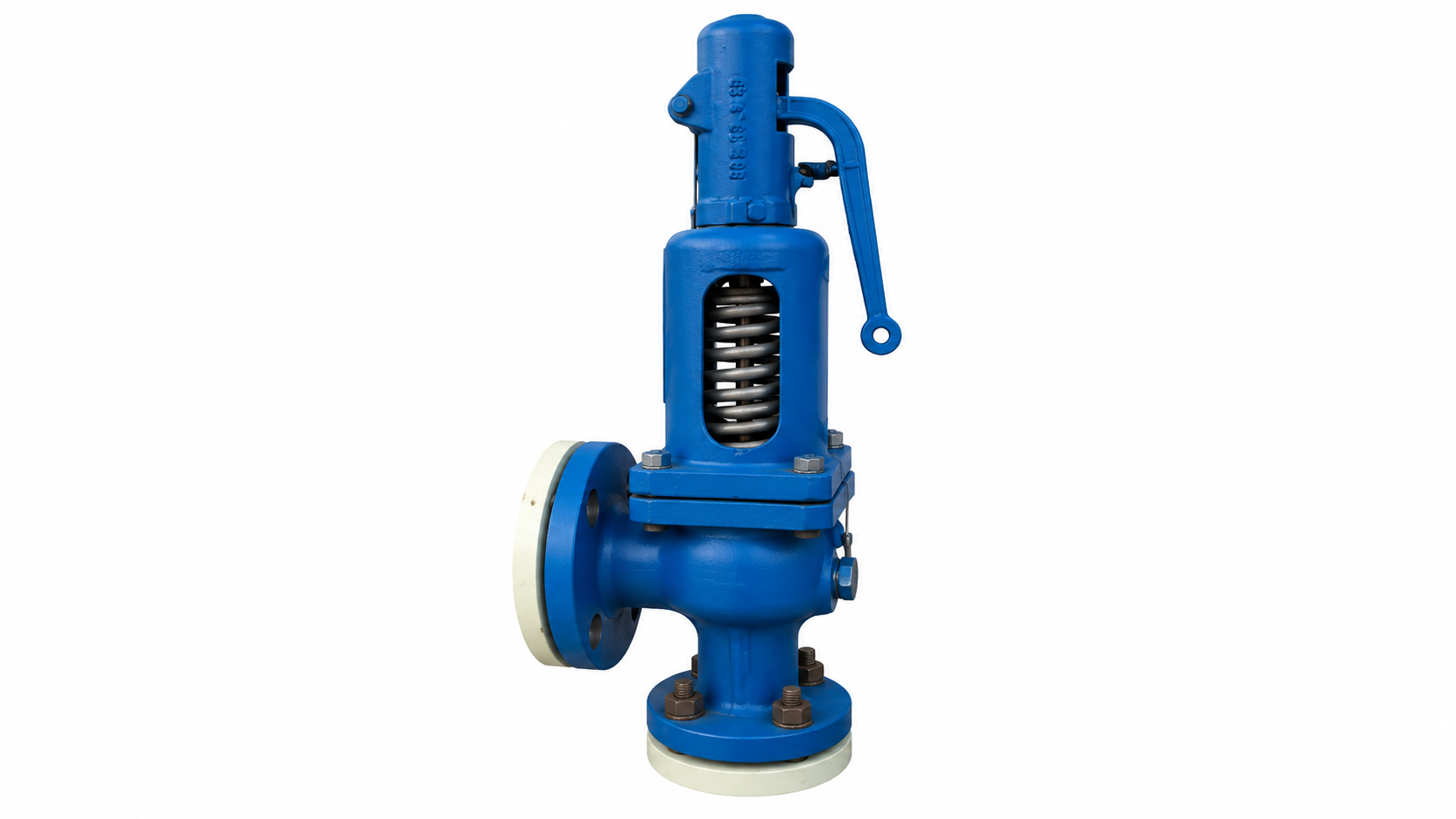

Unitek Valves operates as a trusted manufacturer, supplier, and exporter of industrial valves and related flow-control equipment in India, based out of Mumbai. Supplying domestic engineering firms and international export markets, the company provides robust industrial equipment backed by rigorous quality checks and material traceability. Alongside pipeline strainers, Unitek Valves offers complementary flow control products, including IBR Gate Valves, IBR Globe Valves, IBR Check Valves, IBR Pressure Safety Valves, IBR Pressure Reducing Valves, IBR Steam Traps, and IBR Piston Valves.
