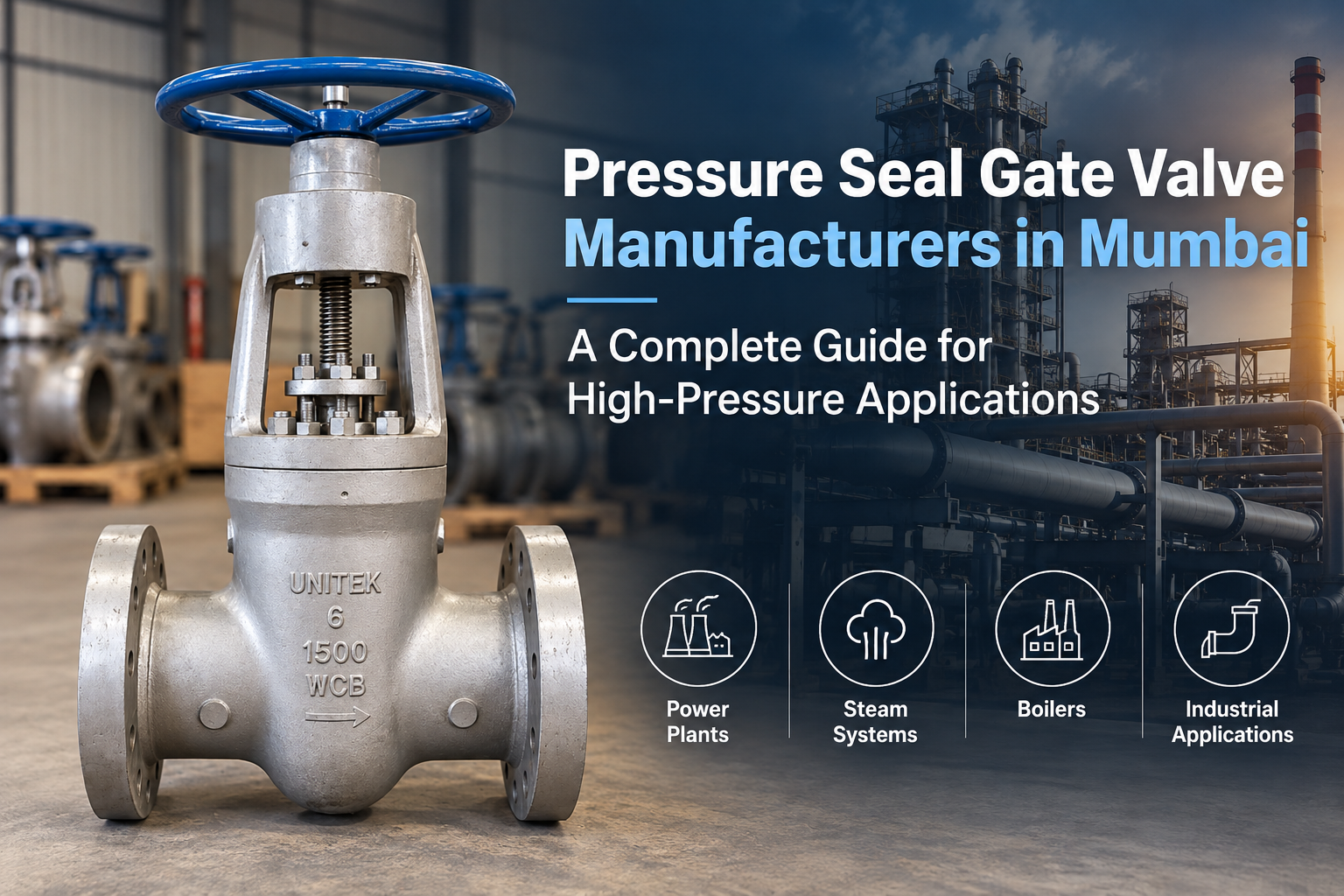

Pressure Seal Gate Valve Manufacturer in Mumbai – Complete Guide for High-Pressure Applications
Pressure Seal Gate Valve Manufacturer in Mumbai, India
Unitek Valves is a Pressure Seal Gate Valve Manufacturer in Mumbai, India, supplying high-pressure gate valves for steam, boiler, thermal power plant, power generation and critical industrial piping applications. Our pressure seal gate valves are available in different sizes, pressure classes, body materials, trim combinations and end connections to meet specific operating conditions and project requirements.
Pressure seal construction is particularly suited to demanding high-pressure and high-temperature services. Unlike a conventional bolted bonnet arrangement, the pressure-assisted bonnet sealing system uses internal line pressure to help maintain sealing at the body-bonnet joint. Depending on the application, these valves can be supplied in Class 600, Class 900, Class 1500 and Class 2500 configurations with suitable carbon steel or alloy steel materials.
What is a Pressure Seal Gate Valve?
A pressure seal gate valve is an isolation valve designed primarily for high-pressure and high-temperature piping systems. Its distinguishing feature is the pressure seal bonnet arrangement, which differs from the conventional bolted bonnet construction commonly used in lower-pressure applications.
The gate travels perpendicular to the flow path and is normally operated in either the fully open or fully closed position. For this reason, gate valves are primarily selected for isolation rather than continuous throttling.
As pressure inside the valve increases, the pressure seal mechanism assists in maintaining the body-to-bonnet seal. This construction makes these valves suitable for demanding steam, boiler and power generation services when properly selected for the operating conditions.
Why Choose Pressure Seal Construction?
For critical industrial piping systems, valve selection must consider pressure, temperature, fluid characteristics, material compatibility and applicable standards.
Pressure seal construction can provide several advantages, including:
- Pressure-assisted bonnet sealing
- Suitability for high-pressure applications
- Compatibility with elevated-temperature service when suitable materials are selected
- Compact body-to-bonnet sealing arrangement
- Availability in higher ASME pressure classes
- Carbon steel and alloy steel construction options
- Flanged and butt-weld end connections
- Manual, gear-operated and actuated configurations
The final valve configuration should always be selected according to the actual design pressure, temperature, fluid and project specification.
Pressure Seal Gate Valves for Power Plants
Pressure seal gate valves are extensively specified for isolation duties in power generation facilities where piping systems may operate under elevated pressure and temperature.
Typical applications include main steam lines, boiler piping, high-pressure steam systems, feedwater lines, utility steam systems and other critical isolation points.
For power plant service, special attention should be given to pressure class, body material, trim, seat design, end connection and operating temperature.
Pressure Seal Gate Valves for Steam Service
Steam service can expose valve components to demanding pressure and temperature conditions. The body, bonnet, gate, stem, seating surfaces and packing therefore need to be selected according to the specified service parameters.
Carbon steel may be suitable for certain applications, while alloy steel grades such as WC6 or WC9 may be specified for elevated-temperature duties depending on the applicable pressure-temperature requirements.
Unitek Valves supplies pressure seal designs for steam and boiler applications based on customer datasheets and project specifications.
IBR Pressure Seal Gate Valves
For applicable boiler and steam installations in India, IBR requirements may need to be considered.
Unitek Valves offers IBR Pressure Seal Gate Valves for applicable steam, boiler and power plant requirements according to customer specifications and required documentation.
When sending an IBR valve enquiry, customers should provide valve size, pressure class, operating pressure, design pressure, operating temperature, design temperature, body material, trim, end connection and required certification.
Pressure Classes
Pressure seal gate valves are commonly available in higher pressure ratings such as:
- ASME Class 600
- ASME Class 900
- ASME Class 1500
- ASME Class 2500
Class selection should not be based on pressure alone. The applicable material pressure-temperature rating and design conditions must also be considered.
Materials of Construction
Depending on service temperature, pressure and project specifications, common cast body materials can include:
Carbon Steel: ASTM A216 Gr. WCB
Alloy Steel: ASTM A217 Gr. WC6, WC9 and other specified grades.
The appropriate metallurgy should be selected according to the fluid, operating conditions and applicable project specification.
Design and Testing Standards
Depending on the required construction and project specification, applicable standards may include:
- API 600 – Steel Gate Valves
- ASME B16.34 – Valves: Flanged, Threaded and Welding End
- API 598 – Valve Inspection and Testing
- ASME B16.5 – Pipe Flanges and Flanged Fittings
- ASME B16.25 – Butt-Welding Ends
The applicable standard and edition should be confirmed against the customer specification before manufacturing.
Pressure Seal Gate Valve Manufacturer in Mumbai
As a Pressure Seal Gate Valve Manufacturer based in Mumbai, Unitek Valves caters to requirements from power plants, EPC contractors, industrial plants, project companies and engineering organizations.
Valves can be offered according to customer specifications in different pressure classes, materials, trims, end connections and operating arrangements.
For accurate technical selection and quotation, customers can submit their BOQ, valve datasheet or detailed technical specification.
Pressure Seal Gate Valve Supplier in India
Unitek Valves supplies high-pressure gate valves to industrial customers across India. Requirements can be evaluated for different sizes, pressure ratings, materials and end connections based on the intended service.
For critical applications, buyers should evaluate material specifications, pressure-temperature ratings, inspection requirements, testing and documentation rather than selecting a valve based only on nominal size and price.
Pressure Seal Gate Valve Supplier in Mumbai
Customers looking for pressure seal gate valve suppliers in Mumbai can submit their technical requirements to Unitek Valves for evaluation.
Our product range caters to steam, boiler, power generation and industrial process applications, with configurations selected according to project specifications.
Pressure Seal Gate Valve Exporter from India
Unitek Valves also caters to export requirements for industrial valves. Overseas customers can submit their BOQ or technical datasheet along with required standards, inspection requirements, documentation, packing requirements and delivery destination.
Valves can be offered for suitable high-pressure steam, power generation and industrial process applications according to the required specification.
How to Select the Correct Valve
Before requesting a quotation, specify the following information:
| Parameter | Required Information |
|---|---|
| Valve Type | Pressure Seal Gate Valve |
| Size | NPS / NB |
| Pressure Rating | Class 600 / 900 / 1500 / 2500 |
| Body Material | WCB / WC6 / WC9 / As Specified |
| Fluid | Steam / Water / Process Fluid |
| Design Pressure | As per process data |
| Design Temperature | As per process data |
| End Connection | RF / RTJ / Butt Weld |
| Operation | Handwheel / Gear / Actuator |
| Design Standard | API 600 / ASME B16.34 / As specified |
| Testing | API 598 / As specified |
| IBR | Required / Not Required |
| Quantity | Required Nos. |
Providing complete process data helps in selecting the appropriate valve construction and metallurgy.
Applications
Pressure seal gate valves can be used in suitable high-pressure isolation services across:
- Thermal power plants
- Boiler systems
- Power generation facilities
- Main steam piping
- High-pressure steam lines
- Feedwater systems
- Refineries
- Petrochemical plants
- Process industries
- Industrial utility systems
Valve suitability should always be verified against the actual process conditions and project specification.
Pressure Seal Gate Valve Manufacturer – Unitek Valves
Unitek Valves is a Pressure Seal Gate Valve Manufacturer in Mumbai, India, supplying valves for high-pressure steam, boiler, power generation and industrial applications.
Our range can be offered in various sizes, pressure classes, materials, trims and end connections according to customer and project requirements. We also cater to requirements for IBR pressure seal valves, high-pressure gate valves, Class 900, Class 1500 and Class 2500 valves for suitable applications.
Contact Unitek Valves with your BOQ, datasheet or technical specification for Pressure Seal Gate Valves.
